Murray Dual Bead Super Sealing Hose Clamp
Dual Bead PVC Hose Clamp
Murray Dual Bead Super Sealing Clamp

Murray Dual Bead Super Sealing Pool Hose Clamp
(This clamp is for our Flexible PVC Pipe )


Item# Item Name List Price Qty Add
Dual-Bead-Hose-Clamp-1.5 Murray Dual Bead Super Sealing Hose Clamp - 1 1/2" Dia (DB28SS305)
$3.99
Dual-Bead-Hose-Clamp-2 Murray Dual Bead Super Sealing Hose Clamp - 2" Dia (DB36SS05)
$4.49
Check the items you wish to purchase, then click


Features:
  • This Murray Dual Bead Super Sealing Clamp is an excellent constant tension clamp for air-to-air and coolant applications.
  • The unique Dual Bead Shield inner liner provides spring action and concentrates band-sealing pressure.
  • Provides 30 percent more sealing performance than standard smooth liner clamps.
  • Flanged edges protect soft hose compounds.
  • This clamp can be found in the marine, agriculture, construction and off-highway markets.




Technical Specs:
Rated Ultimate Torque:
Carbon Screw 50in.lbs. min. (5.6Nm)
SS Screw 60in.lbs. min. (6.8Nm)

Recommended Installation Torque:
Carbon Screw 30-40in.lbs. (3.4 - 4.5Nm)
SS Screw 35-45in.lbs. (4.0 - 5.1Nm)

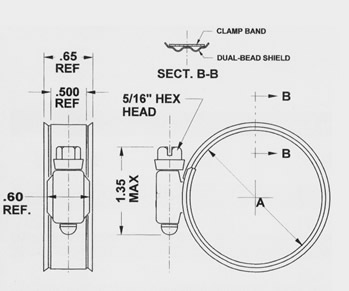

Murray Dual Bead Hose Clamp Diagram

Murray Dual Bead Hose Clamp Specs




Product Description:
This Murray Dual Bead Super Sealing Clamp is an excellent constant tension clamp for air-to-air and coolant applications. The unique Dual Bead Shield inner liner provides spring action and concentrates band-sealing pressure, providing 30 percent more sealing performance than standard smooth liner clamps. Flanged edges protect soft hose compounds. This clamp can be found in the marine, agriculture, construction and off-highway markets. The inner shield provides superb sealing characteristics and is safe for all soft hoses. New Clamping Technology Murray's Heavy Duty Seamless clamp is suitable for use in marine and other aggressive water and atmospheric conditions. These Heavy Duty clamps are designed to resist the corroding effects of salt and bilge water as well as common household cleaning agents and industrial elements. These clamps are also resistant to clamp damage resulting from brass fitting dezincification.


Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 6 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 High Quality Hose Clamps January 29, 2024
Reviewer: Matthew Konopa from Spring Branch, TX United States
Excellent quality and well worth the price.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 April 3, 2021
Reviewer: Chris Motavalli from Howell, NJ United States


Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 the only clamps you want to use May 8, 2015
Reviewer: mario Lo Re from whitestone, NY United States
wow this is the best hose clamps I bought. In the past I used the regular clamps and guess what the hose kept on breaking, because the clamp cut into the hose. The dual bead fits perfect over the hose with out kinging or cutting into. Great product and great customer service.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 dual bead hose clamp November 3, 2012
Reviewer: jean astie from dallas, TX United States
everyting was as advertised flexible pvc is a very good company to deal with

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 HOSE CLAMP June 28, 2012
Reviewer: Edward Peterman from Abilene, TX United States
They should work great!

Was this review helpful to you?

View All Customer Reviews
