Schedule 40 PVC Pipe Reducer Bushing Spig x Fipt
Reducer Bushing Spig x Fipt for Schedule 40 PVC Pipe
Schedule 40 PVC Pipe Fitting

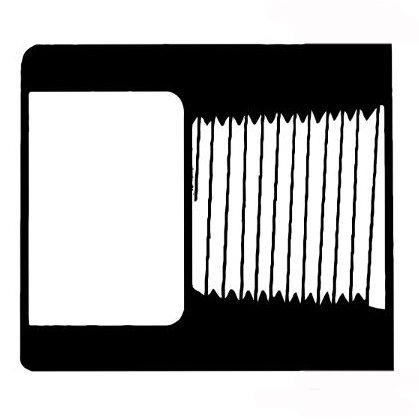

NSF Rated FittingsReducer Bushing Diagram
Reducer Bushing for Schedule 40 PVC Pipe(Spig x Fipt)


Item# Item Name List Price Qty Add
Reducer-Bushing-Fipt-1/2x1/4 Schedule 40 PVC Pipe Reducer Bushing - 1/2 x 1/4 (Spig x FIPT) 438-072
$0.59
Reducer-Bushing-Fipt-1/2x3/8 Schedule 40 PVC Pipe Reducer Bushing - 1/2 x 3/8 (Spig x FIPT) 438-073
$0.59
Reducer-Bushing-Fipt-1x3/4 Schedule 40 PVC Pipe Reducer Bushing - 1 x 3/4 (Spig x FIPT) 438-131
$0.72
Reducer-Bushing-Fipt-1.25x1 Schedule 40 PVC Pipe Reducer Bushing - 1.25 x 1 (Spig x FIPT) 438-168
$1.11
Reducer-Bushing-Fipt-1.25x1/2 Schedule 40 PVC Pipe Reducer Bushing - 1.25 x 1/2 (Spig x FIPT) 438-166
$1.11
Reducer-Bushing-Fipt-1.25x3/4 Schedule 40 PVC Pipe Reducer Bushing - 1.25 x 3/4 (Spig x FIPT) 438-167
$1.11
Reducer-Bushing-Fipt-1.5x1.25 Schedule 40 PVC Pipe Reducer Bushing - 1.5 x 1.25 (Spig x FIPT) 438-212
$1.28
Reducer-Bushing-Fipt-1.5x1/2 Schedule 40 PVC Pipe Reducer Bushing - 1.5 x 1/2 (Spig x FIPT) 438-209
$1.28
Reducer-Bushing-Fipt-1.5x3/4 Schedule 40 PVC Pipe Reducer Bushing - 1.5 x 3/4 (Spig x FIPT) 438-210
$1.28
Reducer-Bushing-Fipt-2x1 Schedule 40 PVC Pipe Reducer Bushing - 2 x 1 (Spig x FIPT) 438-249
$1.71
Reducer-Bushing-Fipt-2x1.25 Schedule 40 PVC Pipe Reducer Bushing - 2 x 1.25 (Spig x FIPT) 438-250
$1.71
Reducer-Bushing-Fipt-2x1.5 Schedule 40 PVC Pipe Reducer Bushing - 2 x 1.5 (Spig x FIPT) 438-251
$1.71
Reducer-Bushing-Fipt-2x1/2 Schedule 40 PVC Pipe Reducer Bushing - 2 x 1/2 (Spig x FIPT) 438-247
$1.71
Reducer-Bushing-Fipt-2x3/4 Schedule 40 PVC Pipe Reducer Bushing - 2 x 3/4 (Spig x FIPT) 438-248
$1.71
Reducer-Bushing-Fipt-2.5x1.5 Schedule 40 PVC Pipe Reducer Bushing - 2-1/2 x 1-1/2 (Spig x FIPT) 438-291
$2.49
Reducer-Bushing-Fipt-2.5x2 Schedule 40 PVC Pipe Reducer Bushing - 2.5 x 2 (Spig x FIPT) 438-292
$2.49
Reducer-Bushing-Fipt-3x2 Schedule 40 PVC Pipe Reducer Bushing - 3 x 2 (Spig x FIPT) 438-338
$2.87
Reducer-Bushing-Fipt-3x2.5 Schedule 40 PVC Pipe Reducer Bushing - 3 x 2.5 (Spig x FIPT) 438-339
$2.87
Reducer-Bushing-Fipt-.75x.5 Schedule 40 PVC Pipe Reducer Bushing - 3/4 x 1/2 (Spig x FIPT) 438-101
$0.45
Reducer-Bushing-Fipt-3/4x1/2 Schedule 40 PVC Pipe Reducer Bushing - 3/4 x 1/2 (Spig x FIPT) 438-101
$0.45
Reducer-Bushing-Fipt-4x2 Schedule 40 PVC Pipe Reducer Bushing - 4 x 2 (Spig x FIPT) 438-240
$6.40
Reducer-Bushing-Fipt-4x2.5 Schedule 40 PVC Pipe Reducer Bushing - 4 x 2.5 (Spig x FIPT) 438-421
$6.40
Reducer-Bushing-Fipt-4x3 Schedule 40 PVC Pipe Reducer Bushing - 4 x 3 (Spig x FIPT) 438-422
$6.40
Reducer-Bushing-Fipt-1x1/2 Schedule 40 PVC Pipe Reducer Bushing- 1 x 1/2 (Spig x FIPT) 438-130
$0.72
Reducer-Bushing-Fipt-1.5x1 Schedule 40 PVC Pipe Reducer Bushing- 1.5 x 1 (Spig x FIPT) 438-211
$1.28
Check the items you wish to purchase, then click


Features:
  • The most common configuration of the Schedule 40 reducer bushings is the spig x fipt reducer bushing.
  • Reducer bushings can fit your needs when your project requires the connection of pipes of two different diameters.
  • Bushings, unlike couplings, tend to fit inside another fitting much like a spigot fitting, allowing the user to place the bushing into the larger fitting, thus reducing the diameter that the larger fitting requires.
  • All of our Schedule 40 fittings are NSF rated 14 & 61, which means they are certified for use with potable (drinking) water.
  • Maximum temperature is 140 degrees F.




Technical Specs:

Type of Fitting Reducer Bushing (Spig x Fipt)
Pipe Size See Chart Below for Sizes
Material PVC Type 1, Cell Classification 12454
Schedule 40
Max Temp (F) 140
Color White
Standards NSF-14 & NSF-61
Compliance Certified for use in potable water applications




Product Description:
Reducer bushings can fit your needs when your project requires the connection of pipes of two different diameters. These fittings are slightly different than couplings, although couplings can also connect two pipes of different sizes. Bushings, unlike couplings, tend to fit inside another fitting much like a spigot fitting, allowing the user to place the bushing into the larger fitting, thus reducing the diameter that the larger fitting requires. Another configuration of the Schedule 40 reducer bushing is the spig x fipt bushing. This fitting cements into a larger fitting and then allows a smaller male threaded pipe to be inserted into it. The spig side of the fitting is cemented or solvent welded and then the male pipe end is threaded into the fitting. For example, a 2 x 1 Schedule 40 spig x fipt reducer bushing works in this fashion. First the 2 end of the fitting is cemented into a 2 slip fitting or opening. The 1 male thread pipe or fitting would then be screwed into the fitting, allowing the 1 pipe to fit into the 2 pipe. All of our Schedule 40 fittings are NSF rated 14 & 61, which means they are certified for use with potable (drinking) water. Maximum temperature is 140 degrees F.
